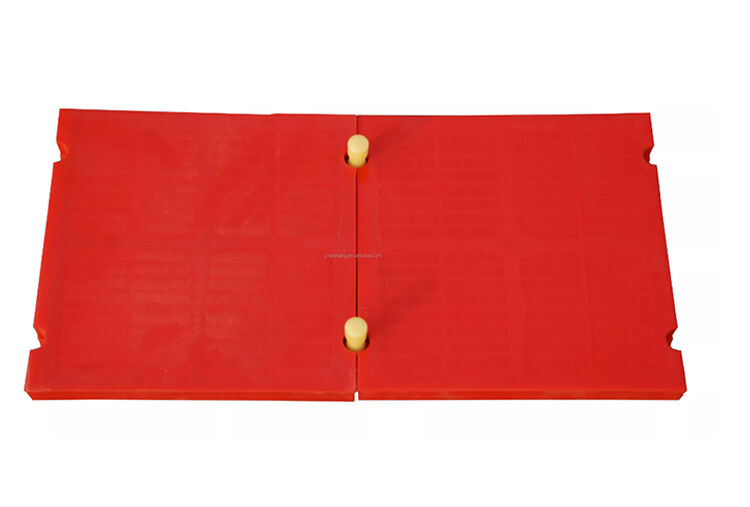

PU/ polyurethane modular mesh screen panel

Modular mesh screen is used for dewatering for vibrating sieve mining machinery parts.

Polyurethane dewatering screen has light weight, high mechanical strength, heat insulation, noise reduction, corrosion resistance, water resistance, oil resistance, excellent wear resistance, good resilience and anti blinding. As the molecular binding polarity is small, it is not easy to adhere to the wet material and accumulates, and the installation is convenient and the service life is long. The main functions are dewatering, desliming, de-intermediation, and can be used for sand washing in sand and gravel plant, coal sludge recovery in coal preparation plant, dry discharge of tailings in ore dressing, etc., so it is also called sand and stone dewatering screen, mining dewatering screen, Mud dewatering screen, tailings dewatering screen, etc.

Applications

Wet applications but may also be applied in dry screens.

Size :305mm*305mm,305mm*610mm etc

Aperture Size:Slot from 0.1mm to 5mm

Fastening Options: Pin-Style, Pin and Sleeve, and Bolt , Clips-on.

Features of Polyurethane Screen Panel

1. Excellent abrasion resistance performance and long service life: 8`10 times longer than common wire mesh, 3 times longer than stainless wire mesh and about 3.9 times longer than natural rubber. It has the best wear-resist performance in the mesh material

2. Little work for maintenance, the polyurethane screen panel is heavy duty structured and hardly to be damaged under normal operation.

3. Low noise: our polyurethane and rubber screen media can reduce that noise level by as much as 9 decibels.

4. Variety of fastening options including Pin-Style, Pin and Sleeve, and Bolt Down, clips-on, hook etc. Whether you need maximum holding power, ease of installation and removal, optimum versatility or a combination of all of these, we have a fastening system to meet your needs.
